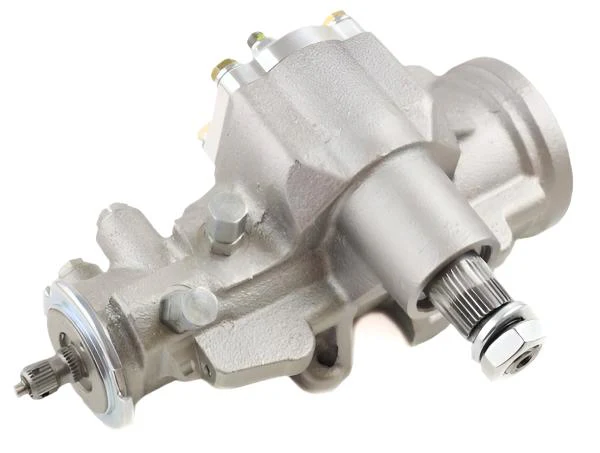

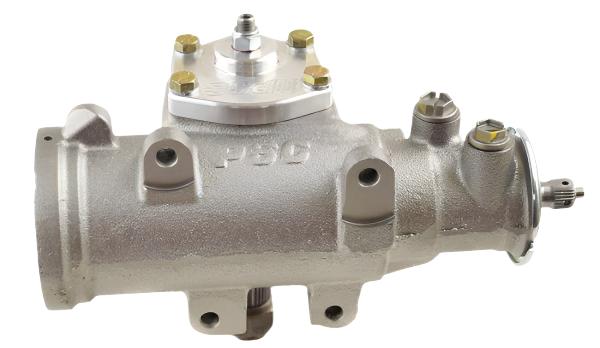

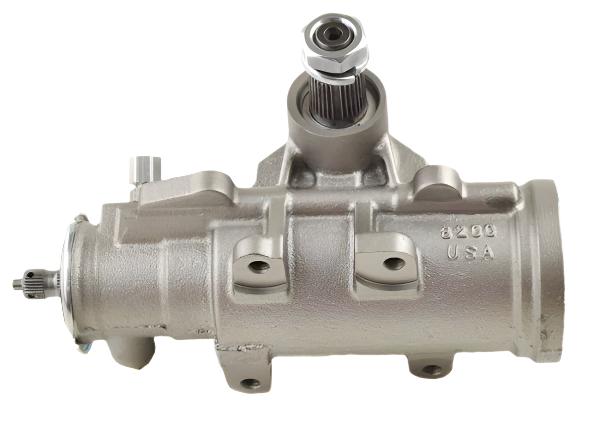

PSC | 1987-2002 Jeep YJ/TJ/XJ Big Bore XD Cylinder Assist Steering Gearbox

Performance Steering Components offers the highest quality power steering gearboxes, pumps, and cylinder assist components for most high-performance power steering applications.

Improved component designs ensure superior handling and performance, durability, and reliability for on-the-road, off-the-road, or track.

All PSC power steering components are manufactured from the highest quality materials.

From the daily driver to the rock-crawling rig, PSC has the high-performance power steering components you need to make transport a safe, reliable, and enjoyable experience.

APPLICATIONS:

• 1966-1979 Jeep Wagoneer with Factory Power Steering (Metric Conversion Required)
• 1980-1984 Jeep Wagoneer with Factory Power Steering
• 1997-2002 Jeep TJ
• 1987-2001 Jeep XJ
• 1987-1995 Jeep YJ

Features:

• 100 Percent New
• 100 Percent Factory Fit
• Billet Aluminum Top and End Covers
• Larger Piston Diameter delivers Increased Torque Output for Upgraded Tire Sizes and Locking Differentials
• Turning Ratio: 13-16:1 Variable, 3.3 Turns Lock-To-Lock
• Input Shaft: 3/4 Inch - 30 Spline
• Port Type: Metric O-Ring
• Mounting: Four (4) Bolt, Inside-the-Frame
• Threaded Ports are machined directly into the gearbox housing for -6AN fitting connection to PSC Steering Assist Cylinder. Unlike welded fittings, this reduces the risk of a fitting breaking off due to an overextended hose assembly, replacement fittings can easily be serviced if necessary.

TECH:
For racing applications that have a safety requirement, purchase the Stage 8 Locking Fasteners.
