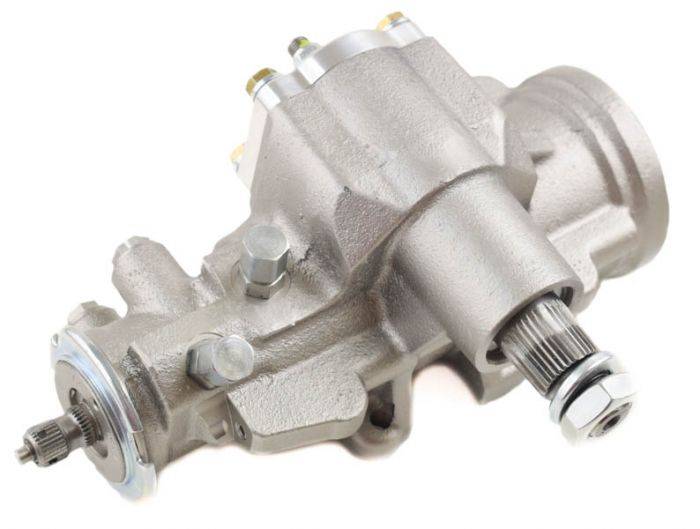

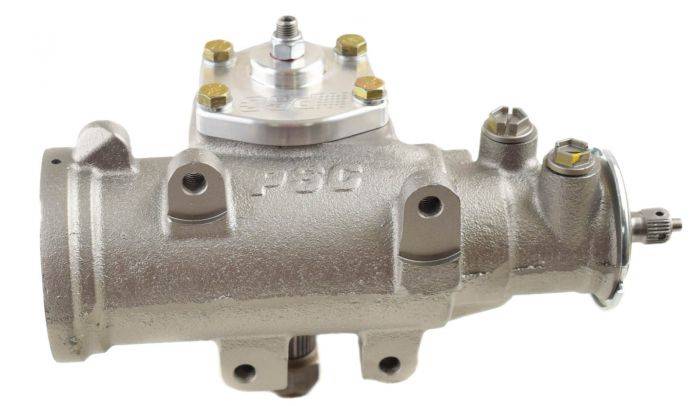

PSC | 2003-2006 Jeep LJ/TJ Big Bore XD Cylinder Assist Steering Gearbox

Fits:
2003-2006 Jeep LJ/TJ

Features:

• 100 Percent New
• Saginaw Type Replacement for OEM ZF Steering Gearbox
• Larger Piston Diameter delivers Increased Torque Output for Upgraded Tire Sizes and Locking Differentials
• Modified for Adding Steering Assist Cylinder
• Billet Aluminum Top and End Covers
• Turning Ratio: 14:1, 3.25 Turns Lock-To-Lock
• Input Shaft: 3/4 Inch - 30 Spline
• Port Type: Metric O-Ring
• Mounting: Three (3) Bolt, Inside-the-Frame
• Threaded Ports are machined directly into the gearbox housing for -6AN fitting connection to PSC Steering Assist Cylinder. Unlike welded fittings, this reduces the risk of a fitting breaking off due to an overextended hose assembly. Replacement fittings can easily be serviced if necessary.

Tech:

HK2000 High Pressure Hose Assembly required for easy installation.
Purchase a High Pressure and Return Line Kit here, HK2000 Hose Conversion Kit

Due to the increased overall size of the SG400R, some applications may require a 1" body lift to clear interference issues of the high pressure and return lines.

Some applications may require the modification of the factory steering shaft, shortening it by approximately two (2) inches. How to Shorten Your Intermediate Shaft

Installation of Jeep/MOPAR Intermediate Shaft PN 52078705 is required

NOTES:

Due to the increased overall size of the SG400R, some applications may require a 1" body lift to clear interference issues of the high pressure and return lines. Purchase a High Pressure and Return Line Kit here, HK2000 Hose Conversion Kit

PSC recommends SWEPCO 715 Power Steering Fluid in all PSC Steering Systems
