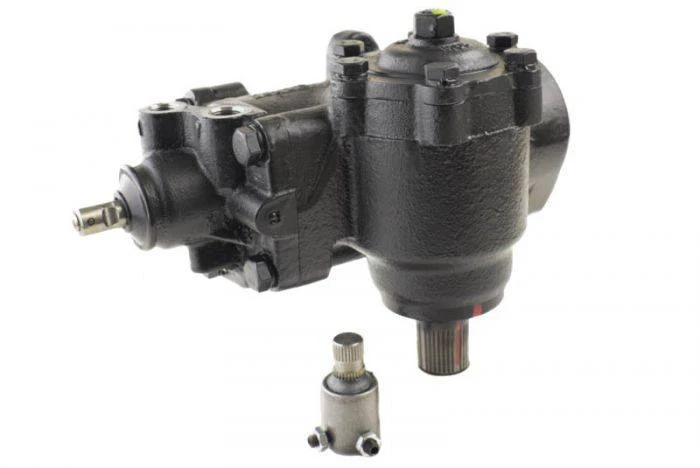

PSC | 1988-1998 GM Big Bore XD Steering Gearbox

APPLICATION:

1988-1998 GM 2500/3500 4WD

Features:

• 100 Percent NEW Component


• Upgraded 45MM Sector Shaft Bearing eliminates sector shaft deflection, delivers smooth steering operation, and extends the service life of the gearbox.


• 13/16:1 Variable Ratio slightly reduces number of turns lock-to-lock for improved parking lot maneuvering and more stable highway driving.


• Larger Piston Diameter delivers Increased Torque Output


• OEM Pitman Arm Compatible

Specifications:

• Turning Ratio: 13/16:1, 3.5 Turns Lock-To-Lock
• Input Shaft: GM DD with 3/4-30 Spline Adapter
• Port Type: Metric O-Ring
• Four (4) Slot Pitman Arm Required
• Mounting: Three (3) Bolt, Inside-the-Frame
