PacBrake | Onboard Air Kit with 2 1 / 2 Gallon Air tank W/ Air Compressor Air Tank Fittings Pressure Switch Relay Electrical Connectors Required Accessories

PacBrake | Onboard Air Kit with 2 1 / 2 Gallon Air tank W/ Air Compressor Air Tank Fittings Pressure Switch Relay Electrical Connectors Required Accessories

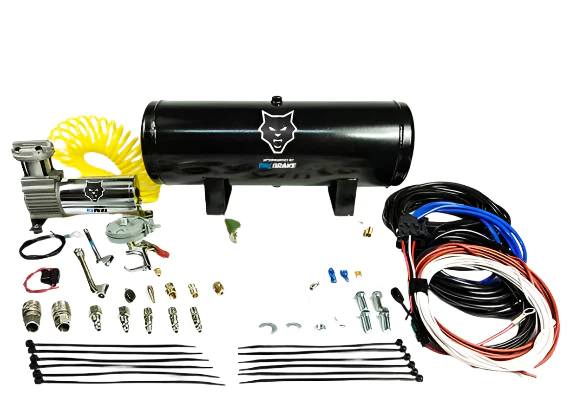

Onboard Air Kit with 2 1/2 Gallon Air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories

Each Onboard Air System comes complete with:

  • HP325 Series 12V DC compressor (Part Number HP10143)
  • 2 1/2 Gallon air tank (Part Number HP10013)
  • Fittings
  • Pressure switch
  • Relay(s)
  • Electrical connectors and all applicable accessories

Compressor Specifications

  • (Part Number HP10143)-12 VDC
  • 100 percent (1 Hour at 100 PSI) duty cycle
  • 1/4 HP
  • Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
  • Weight is 5.5 lbs

Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

Air Tank Specifications

  • (HP10013)-2 1/2 gallon capacity
  • 5-3/8' NPT ports
  • Rust inhibitor applied to inside of tank
  • Max working pressure 150 PSI
  • Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
  • Weight is 9.8 lbs
  • Welded on mounting brackets.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

$164.90

Original: $471.15

-65%
PacBrake | Onboard Air Kit with 2 1 / 2 Gallon Air tank W/ Air Compressor Air Tank Fittings Pressure Switch Relay Electrical Connectors Required Accessories—

$471.15

$164.90

Product Information

Shipping & Returns

Description

Onboard Air Kit with 2 1/2 Gallon Air tank consists of air compressor, air tank, fittings, pressure switch, relay (s), electrical connectors and required accessories

Each Onboard Air System comes complete with:

  • HP325 Series 12V DC compressor (Part Number HP10143)
  • 2 1/2 Gallon air tank (Part Number HP10013)
  • Fittings
  • Pressure switch
  • Relay(s)
  • Electrical connectors and all applicable accessories

Compressor Specifications

  • (Part Number HP10143)-12 VDC
  • 100 percent (1 Hour at 100 PSI) duty cycle
  • 1/4 HP
  • Size is 8.7 inch x 4 inch x 6.2 inch (LxWxH) or 221 mm x 102 mm x 158 mm
  • Weight is 5.5 lbs

Compressor features a copper wire wound permanent magnet motor; oil-less design; sealed bearings; PTFE piston ring; cast aluminum cylinder head; hard anodized aluminum cylinder and aluminum sleeve.

Air Tank Specifications

  • (HP10013)-2 1/2 gallon capacity
  • 5-3/8' NPT ports
  • Rust inhibitor applied to inside of tank
  • Max working pressure 150 PSI
  • Size is 21.0 inch x 6.9 inch x 8.9 inch (LxWxH)
  • Weight is 9.8 lbs
  • Welded on mounting brackets.

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
