PacBrake | 12V HP625 Series Heavy Duty Air Compressor Kit W/ HP10625H Air Compressor The Entire Unloader Block Assembly Kit W/ Pre-Built Harnesses Kit HP10116

12V HP625 Series Heavy Duty Air Compressor Kit consists of HP625 Series Pacbrake HP10625H Air Compressor and the entire unloader block assembly kit with pre-built harnesses.

Kit Number HP10116 Pacbrake's 625 Series heavy duty Pacbrake Air Compressors have a 100 percent duty cycle and are offered in two pump head configurations-Vertical and Horizontal.

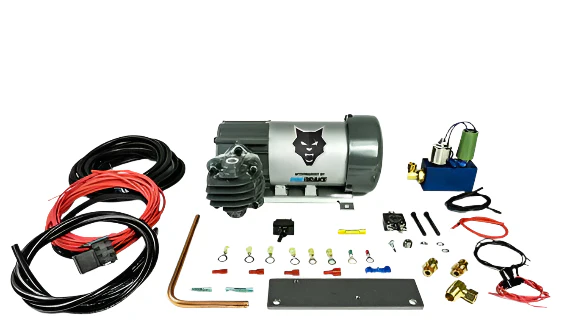

This kit includes

• Pacbrake's HP625 Series Pacbrake Air Compressor (Kit Number HP10625H)
• The entire unloader block assembly kit with pre-built harnesses
• Kit Number HP10116 All you need is a mounting location, power, ground wire and a pneumatic air line

Compressor features

• Copper wire wound permanent magnet motor
• Oil-less design; sealed bearings
• PTFE piston ring
• Cast aluminum cylinder head
• Hard anodized aluminum cylinder and aluminum sleeve.

Compressor Specifications

• 12V DC
• 100 percent duty cycle at 100 PSI
• 3/4 HP
• Vertical head configuration
• Size is 11.5 inch x 6 inch x 9.5 inch or 293 mm x 153 mm x 242 mm (LxWxH)
• Weight is 17.7 lbs
