Linkswell | 2014-2018 Dodge Ram 1500-4500 / 2019-2023 Ram 1500 Classic Generation 6 T-Style Radio *DISCONTINUED*

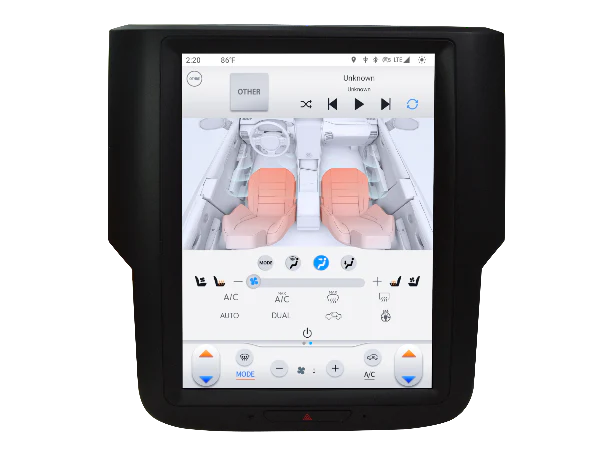

• 10.4″ HD touch screen Android Tablet
• Android 11 w/Fast Boot
• Qualcomm QCM6125 8Core Processor
  • 4GB Ram
  • 64GB Memory
• Google Play Store App Downloads
  • Volume, Fan Speed, Temp, etc.
• **USING WIFI or SIM card** run Google Maps, WAZE or other Data based navigations
• AM/FM Radio w/RDS (12 FM presets, 6 AM presets, plus My Favorite Stations )
• 3 USB inputs (1 factory input, 1 auxiliary)
• BT 5.0 DR/EDR/BLE
  • Bluetooth may work with certain Bluetooth controlled devices
• USB Music and Video player w/HD Video and Video in motion options
• HDMI Output
• HDMI Input
  • REQUIRES PART NUMBER LW-TSHMDI-IN
• 4X50 Watt built-in amplifier w/DSP & EQ
• 4 Volt RCA Preouts (Front, Rear, Sub)
• SPDIF Output
  • Optical
• EQ
  • 16 Band
  • Low Pass/High Pass Filter
  • Subwoofer
    • Filter
    • Gain Control
• PhoneLink System (Apple & Android compatible)
  • Wireless Apple CarPlay
  • Wired / Wireless Android Auto
• On Screen/touch screen climate controls – if equipped A/C, Dual Zone Climate, Seat heaters/coolers, defroster, etc.
• 3 Camera inputs (Front, rear, side)
  • Retains Factory reverse Camera
• Display factory parking sensors (if equipped)
• WIFI for web browser, and streaming apps
  • 2.4 GHz
  • 5G
• Optional SIM card Slot
  • Verizon and T-Mobile Compatible

**May not be compatible with other aftermarket CANBUS devices that are installed in the vehicle….. ie tuners, start stop bypasses, OBD devices, speed calibrators etc.

• 2014-2018 RAM 1500/2500/3500/4500
• 2019 RAM Classic Body style

Factory Features Retained: (if present)

USB Ports
Steering wheel controls
Factory backup camera
Factory 360 camera system
Factory rear sensors w/audio feedback (mid-year 2016 & newer)
Manual HVAC controls (will not convert MANUAL to DUAL controls)
Dual HVAC controls
Factory heated seats
Factory cooled seats
Factory remote start

Factory Features NOT Retained: (if present)

UConnect features
Satellite radio
HD radio
CD Player
RAM Air Ride settings on touchscreen
Driver Information Center radio & navigation displays
Factory Microphone
Voice Command button on the steering wheel
Ram Trailer Package touch screen settings – the physical trailer package settings will still work

MID-YEAR 2016 & OLDER:
Rear sensor audio (visual display is present)
Some models: Heated mirrors

NOTE: THE LIST ABOVE IS WHAT IS KNOWN REGARDING INTEGRATION WITH FACTORY FEATURES AND OPTIONS.
SOME COMBINATIONS OF FACTORY OPTIONS MAY NOT HAVE BEEN TESTED IN THE DEVELOPMENT OF THIS UNIT, AND MAY NOT BE SUPPORTED.
IF YOUR VEHICLE HAS AN OPTION OR FEATURE THAT IS NOT SHOWN, PLEASE CALL BEFORE PURCHASE TO CONFIRM WHETHER OR NOT IT IS SUPPORTED.
WE DO NOT REFUND BASED ON FACTORY FEATURES NOT BEING SUPPORTED.
