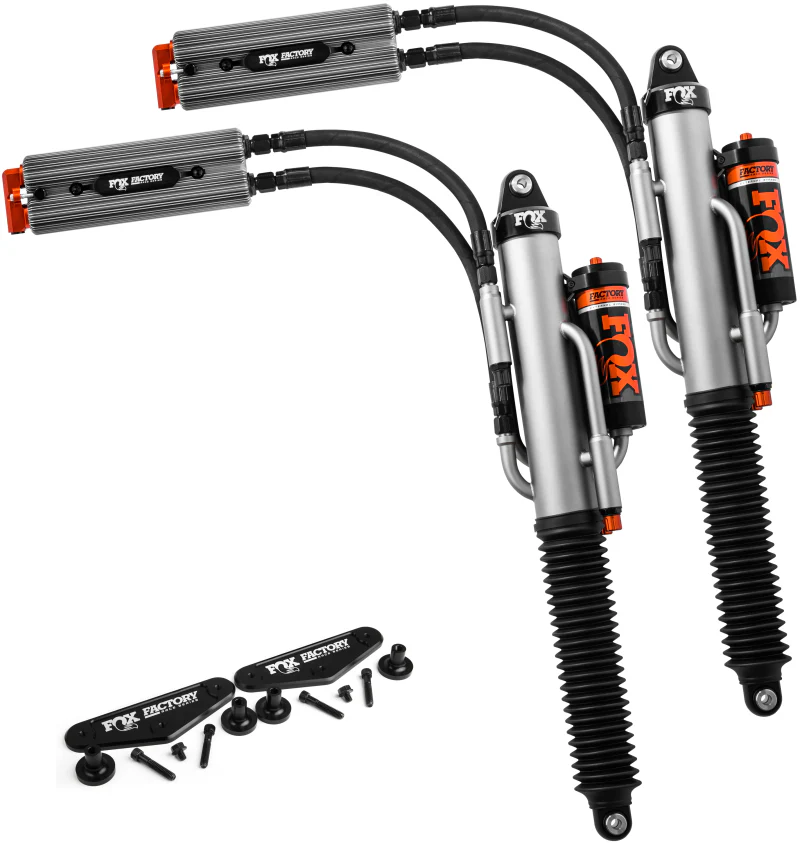

Fox | 2017-2018 Ford SVT Raptor 3.0 Factory Series External Bypass QAB Reservoir Shock Pair | 0-1 Inch Lift
Taking inspiration from off-road racing, the Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2).
This kit delivers the next level of off-road performance without sacrificing every day ride quality.
| Body | 3.0" steel body new, proprietary coating for improved durability |
|---|---|
| Reservoir | NEW, hard anodized impact extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge |
| Components | Hard anodized, CNC-machined 6061-T6 billet aluminum |
| Shaft | 7/8" 17-4 H900 hard chrome plated stainless steel |
| Piston | Hard anodized 6061-T6 billet aluminum high flow race piston |
| Valving | Specific for Gen 2 Raptor to maximize performance and comfort |
| Bearing | Spherical, PFTE-lined, heat-treated steel |
| Adjustments | Quick Adjust Bypass (QAB) adjusters |
| Adjuster Type | QAB - Quick Adjust Bypass |
| Extended | 31.150 |
| Compressed | 18.880 |
| Travel | 12.270 |
| Top Mount | Eyelet |
| Bottom Mount | Eyelet |
