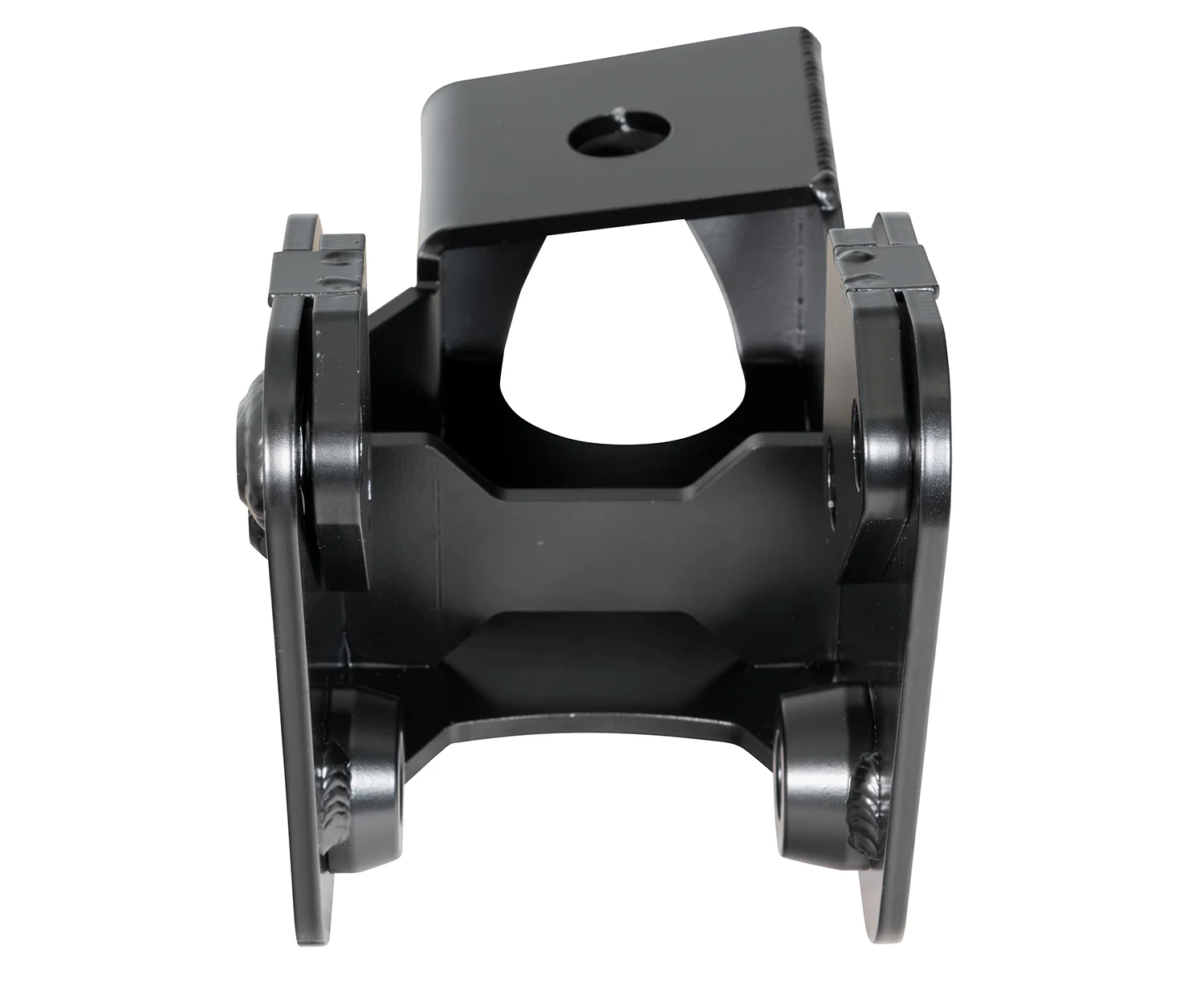

Carli Suspension | 2023-2024 Ford Super Duty 4WD Radius Arm Drop Brackets - 3.5 Inch Lift

SKU: CS-FRAD-LVL-2325
– Drops Pivot Point For Ideal Arm Angle on Carli 3.5″ Lift
– 1/4″ Steel Construction, Powder Coated Finish
– Bolt-on Installation

The 2023+ Super Duty introduced some new challenges, specifically pertaining to caster. The steering assist and Ford’s 1° – 3.6° allowable caster range seems to work alright for those equipped with stock, relatively low-mileage Super Duties but, once a lift or oversized tire enters the equation, the handling at this low caster specification leaves us wanting.

When lifting the front of the Super Duty 3 – 3.5″, the factory caster is reduced by approximately 1.5°. For the 2020-23 Super Duty, we provide a 2° caster shim which is enough to restore this caster and add a touch more – unfortunately, this “touch more” is rarely enough for proper tracking. This leaves us recommending our Adjustable Radius Arms proven to add an additional 2.5° of caster (when maxed). Combining the Carli Arms and 2° shims results in a Super Duty on 37″ tires that holds a lane, and returns to center after a turn, better than a stock truck.
