Carli Suspension | 2013-2018 Dodge Ram 3500 SRW / 2019+ 3500 DRW Spec 2.0 Backcountry Leveling System - 2.5 Inch Lift
NOTE: Does NOT fit OEM rear auto-level suspension.
SKU:Ā CS-DLVL-BC-CS-13-D
Ram 2.5" Backcountry Leveling System, Diesel, Carli-SPEC
- 20013-18 3500 SRW with factory leaf springs.
- 2019+ 3500 DRW with factory leaf springs.

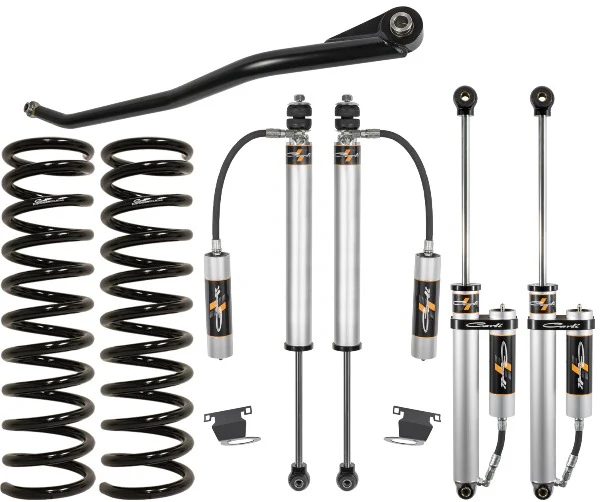

Base Kit Includes:
| CS-DLRC-14-LVL-D | Leveling Front Coils |
| CS-DLVLSPKG-CS20RR-B | Carli SPEC 2.0" Remote Reservoir Shocks, Front and Rear with Res Mounts |
| CS-DATB-1419 | Adjustable Track Bar |
Ā
The Backcountry 2.0 system is designed for people seeking the best ride on and off-road quality on a budget; basically, the Leveling Kit for those that want to have a little dirt-road fun in their 8,500lb truck without losing the on-road ride quality or usability for which the truck was designed. Youāre no longer limited to the highway while gravel roads become uninteresting as you can drive them at speed with one hand on the wheel. The 2.5ā lift height doesnāt require the front or rear geometry correction of our 3ā Systems.
Utilizing Carli SPEC 2.0ā³ Diameter, Remote Reservoir shocks, weāve developed a tune that delivers all around comfort and ride quality designed for on-road, in town, highway, towing/hauling as well as slow to mid speed off road use. The remote reservoir Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8ā³ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are specād with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli.
The rear shocks are also included with this system and have been custom tuned to maximize the ride quality for the factory rear coil springs. As the rear springs remain unmodified, load capacity is maintained while predictability is improved. For those that arenāt looking for massive increase in travel or big shocks but still desire a level stance and improved ride quality and handling characteristics, on and off-road, this is the perfect kit.
The ride quality can be substantially increased with the addition of our Torsion Sway Bar. We recommend a 35ā tire on a wheel thatās no more than 9ā wide with 5.5ā-6ā Backspace. An 18ā diameter wheel will be best to ensure optimal ride quality (more rubber = better small bump compliance) and an unloaded tire pressure of 45F/40R is recommended. The addition of a Carli Low-Mount Steering Stabilizer is recommended for any tire over factory size.
This system is tuned for the 3500s equipped with rear leaf springs. It will install on the 3500Ā trucks equipped with the factory auto-leveling air assist but the tuning is NOT refined to the platform. We recommend you measure the truck as it often takes less than 2.5ā³ of front lift to level the Air-Assist Rams.
