Baja Designs | Squadron Pro Light Kit 2 Inch A-Pillar Mounts With Harness | 497102

Take your UTV side by side to the next level with our Baja Designs UTV vehicle specific mounting kits.  This kit comes equipped with a pair of Squadron Pro LED lights that will truly light up the night at 9,800 lumens at 80 watts. Whether you’re looking for more trail coverage or just need more light for outdoor working conditions, these Squadron Pro LED lights have you covered.

Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications(Per Light): Lumens: 4,600 Utilizing 2 types of Cree LEDs Wattage/Amps: 40W / 2.90A Dimensions: 3.07" x 2.77" x 3.07" Weight: 12 ounces LED Life Expectancy: 49,930 Hours Front Lens: Hard Coated Polycarbonate Housing: Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof, Submersible to 9ft) IK10 Compliant (Mechanical Impact Testing)

Compatible Models for 1.75” Mounts:
Polaris RZR
Polaris Ranger
Arctic Cat Wildcat

Compatible Models for 2” Mounts:
Can-Am Maverick
Can-Am Commander
Yamaha Viking

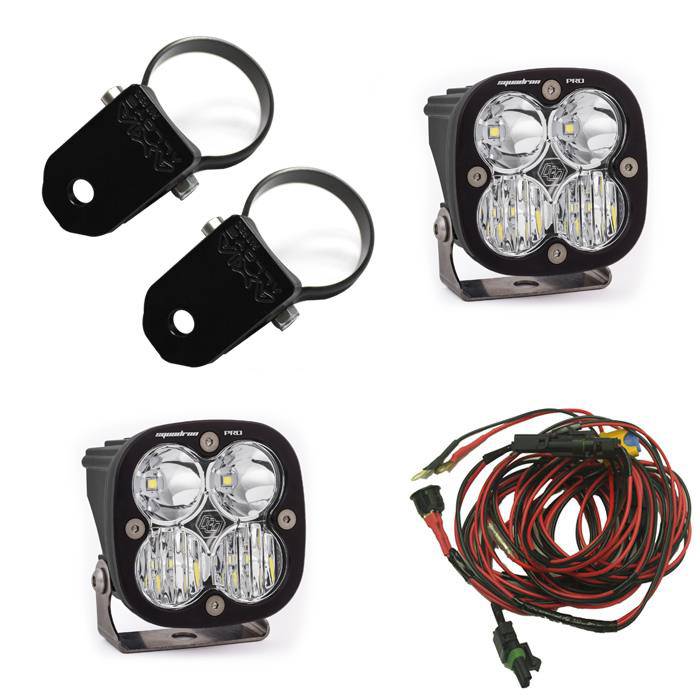

Includes:

• (2) Squadron® Pro LED Lights
• (2) A-PILLAR Mounts
• Wiring Harness




Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
