Baja Designs | 2019+ KTM 690 LED XL Pro Light Kit | 507072

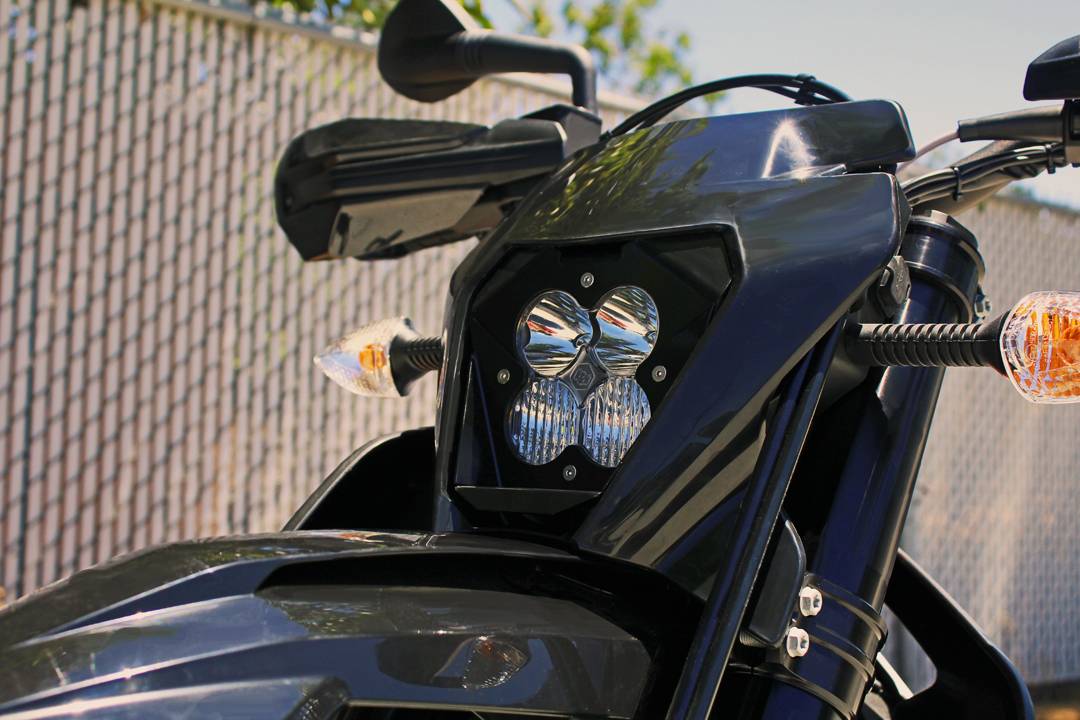

Specifically designed for those riders who are looking for more than just your average headlight.  The XL Pro, LED KTM 690  (19-on) kit is in a league of its own, producing 4,600 lumens and 40 watts giving you the perfect mix of power and performance, and offers a 20% dimming feature.  The XL Pro, LED KTM 690  (19-on) kit Kit has been meticulously designed by our engineers to give our riders an extremely light weight (2.45 lbs) race light, while presenting a unique style and appearance that you will only find from Baja Designs.The XL Pro now features a variety of Cree LEDs to provide a 20% more reach, with the same power consumption! The XL Pro, LED KTM 690 (19-on) kit Kit is plug and play making for an easy install. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.


Baja Designs Features: Satisfactions Guarantee – 30 Day Money Back Guarantee Limited Lifetime Warranty – Complete Purchase Protection uService® – Replaceable Lenses And Optics ClearView® – All The Light, Right Where You Need It. MoistureBlock™ – Waterproof, Rain Proof, Submersible CopperDrive® – Only LED Driven At 100% 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications: Lumens: 4,600 Utilizing 2 Types Of Cree LEDs Wattage/Amps:  40W / 2.90A Dimensions: 4.43" x 3.65" x 4.43" Weight: 1.85 lbs LED Life Expectancy: 49,930 Hours Front Lens:  Hardcoated Polycarbonate Housing:  Hard Anodized & Powder Coated Cast Aluminum Bezel: Billet Machined Aluminum Hardware & Bracket Material: Stainless Steel Exceeds MIL-STD810G (Mil-Spec Testing) Built-In Overvoltage Protection IP69K (Waterproof up to 9ft & Pressure Washable) IK10 Compliant (Mechanical Impact Testing)


Includes:

• XL Pro, LED KTM 690  (19-on) kit
• 12-9016 KTM Hi-Low Relay Harness



Patterns:

Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Wide Driving: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

Spot: A longer and narrower 9° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

Work/Scene: Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving. (Lighting Zone 7)
